Robot mode
Robot Color 72
Robot Color 72 is the longer 72 s Robot color-difference row, trading airtime for more chroma detail than Robot 36.
Reference onlyMode sample

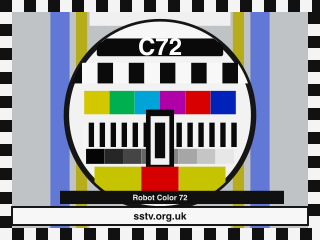

BBC-style colour test card and app-generated audio
The image is generated locally for this mode's raster. For supported modes, the audio sample is encoded from that image with the SSTV Signal Desk transmitter code, then published as lossless FLAC for static playback.
No app-generated audio sample is published for this reference-only mode because no matching transmitter entry exists in the app code.
Mode spec
| Short name | C72 |
|---|---|
| Support status | Reference only |
| Spec status | Reference timing row from the OK2MNM SSTV mode-list PDF. |
| Duration | 72 s |
| Frame | 320 x 240 |
| Data lines | 240 |
| Public VIS | VIS 12 |
| Standard VIS code | 0x0C (12) |
| Extended/N-VIS | No |
| Color model | YCrCb |
| Component sequence | Y-RY-BY |
| Line rate | 200 lpm |
| Public timing profile | Mode-list row gives 72 s total duration, 240 scan lines, 320 columns, and 200 lpm; line-level porch timing is not part of this catalog row. |
Strengths
- C72 has a concrete catalogue row: 72 s, 320 x 240, YCrCb, VIS 12.
- C72's Y-RY-BY component order and 200 lpm line rate make it useful for comparing airtime, raster, and colour structure against related modes.
Tradeoffs
- C72 is not app-supported yet, so the 72 s / 320 x 240 row should be treated as reference data rather than a verified transmit preset.
- C72 still needs implementation-grade porch, sync, and pixel timing before an app-generated WAV/FLAC sample can be published with the same confidence as supported modes.
Source notes
OK2MNM SSTV Handbook chapter 5 lists C72 as YCrCb, VIS 12, 72 s, 240 lines, 320 columns, 200 lpm. Robot 72 family definition in public mode catalogs.
- SSTV Handbook Chapter 5: List of SSTV modesSSTV Handbook - accessed 2026-08-24Reference for analog SSTV mode names, VIS codes, durations, line counts, column counts, and line rates.
